| MOQ: | 1 Set/Sets |
| Price: | $2,000.00 - $4,000.00 / Set |
| Standard Packaging: | wooden box |
| Delivery Period: | 5-8working days |
| Payment Method: | Western Union, T/T, L/C |
| Supply Capacity: | 20 Set/Sets per Month |

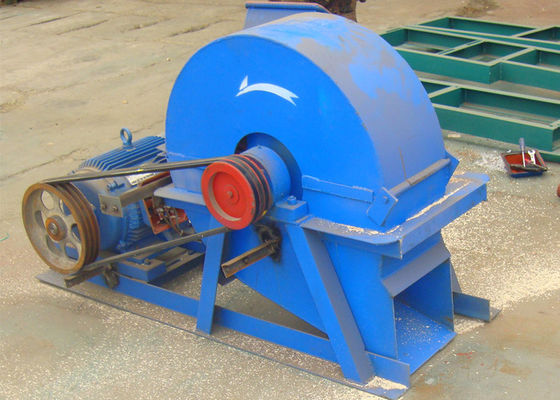

Wood chipper machine (also named wood shaving/cutting machine) is an ideal machine, which for preparing with producing wood powder. The machine can process timber, branch and other raw materials into wood chips, with less investment and low energy consumption, high efficient, yield good economic returns .And the advantages of the machine is easy maintenance. The equipment can also be used as raw materials ,which for produce edible mushrooms,shaving board,sawdust board and dense board .
Characteristics:
1.The chipper supplied by us are special wood chipping machine to produce high quality wood. This machine is widely applied to papermaking, shaving board and MDF area or wood produce base. 2.The chipper highly structured, reasonable structure, easy installation, operation and maintainence, high production capacity. When cutting the raw wood, the wood chips is high quality and also the chips length can regulate freely in the defined range.
Working principle :
The wood is fed into through feed port, when it touches to cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, at last, these wood pieces are sent out through high speed steam-flow produced by fan blade in the knife plate. Raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber stalk, the length of chips can be adjusted in a certain range as needed
|
Model
|
Blade No.
|
Feed size
|
Capacity
|
Power
|
Dimension
|
|
400
|
3
|
150*150mm
|
0.6-1.5t/h
|
7.5kw
|
1200*500*800
|
|
600
|
3
|
180*150mm
|
1.5-3 t/h
|
15kw
|
1500*570*1050
|
|
700
|
3
|
190*200mm
|
2-6 t/h
|
18.5kw
|
1500*680*1100
|
|
800
|
4
|
200*200mm
|
3-8 t/h
|
30kw
|
1850*730*1240
|
|
950
|
4
|
230*250mm
|
5-10 t/h
|
37kw
|
1900*820*1500
|
1. Supply to USA,Europe,and Austrilia
2. Easy maintenance
3. Professional charcoal machine supplier
4. Energy saving
Gongyi city sanjin charcoal factory was built in 1988, is located in gongyi city in henan province.Is a technology leading enterprises, the People's Republic of China import and export enterprises, charcoal machine won the national patents 10.Company main products: charcoal, charcoal machine automation equipment, series of straw gasifier, straw gasification, carbon powder molding machine, grinder, sawdust dryer, stick machine, such as coking furnace large biomass equipment production line.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various charcoal machines, including crusher,sawdust charcoal briquette machine ,dryer, carbonized furnace etc
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
|
|
